Replacing the HVAC-Audio-CD in Gen 7

For anyone interested here is a lot more information on the Audio-6CD and HVAC unit and the problems and a possible solution to replacing the OEM Audio-6CD, especially if you are into DIY and not afraid to get your hands a little dirty.

Original Post - driveaccord.net/forums/ I decided to revisit this project and make sense of missing circuits and block diagrams.

Last time I dismantled the unit I managed to identify most of the IC’s on the main PCB. Specifically I identified the LCD Controller IC. After looking over the sockets and pin assignments on the main PCB I was starting to get really @#&^% off.

They have placed the display CPU inside the Radio. This drives the LCD data-clock, data-stream, control lines AND the key-scan controller for all audio control to and from the display Driver/Key-scan controller and LCD display circuitry located on the main HVAC PCB.

If you try to relocate the HVAC PCB, you will lose the LCD display and button functions when you unplug the radio from the HVAC board. It appeared that key-scan functions for all buttons on the HVAC PCB were built into the Display controller. If so, you may lose control of the HVAC if HVAC buttons are scanned through this device.

I discovered that an Air-conditioning data-stream is fed into the Radio unit – This is information about the current control state, settings and all diagnostic data and is decoded and then re-encoded in the Radio before being sent to the HVAC PCB and displayed on the old LCD.

Using a digital storage CRO I managed to identify a repeating data stream on this control line. Once all timing information had been calculated I set about programming a Micro-Controller to decode this stream and send raw data to the USB port on the PC. I then had the task of decoding the raw data and identifying which functions each byte or bit controlled or indicated. This has been accomplished and the picture shown is an actual screen capture of the basic display software I wrote running on the PC. - This has not had HVAC controls added at this time

In Short – The radio and CD can be removed and all HVAC functions can be retained.
__________________
04 - V6 Auto Luxury Accord (Thail build).
Various DIY info.
Itís easy to be NASTY - Sometimes it takes a little more effort to be NICE.
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

  #2
Old 10-22-2010, 06:01 PM
MikeCz MikeCz is offline
Mike

Join Date: Jun 2009
Location: Australia
Posts: 677
Thanks: 8
Thanked 92 Times in 70 Posts
Existing layout



Existing layout
__________________
04 - V6 Auto Luxury Accord (Thail build).
Various DIY info.
Itís easy to be NASTY - Sometimes it takes a little more effort to be NICE.
Reply With Quote Quick reply to this message
  #3
Old 10-22-2010, 06:02 PM
MikeCz MikeCz is offline
Mike

Join Date: Jun 2009
Location: Australia
Posts: 677
Thanks: 8
Thanked 92 Times in 70 Posts
Mod Layout



Mod Layout
__________________
04 - V6 Auto Luxury Accord (Thail build).
Various DIY info.
Itís easy to be NASTY - Sometimes it takes a little more effort to be NICE.
Reply With Quote Quick reply to this message
  #4
Old 10-22-2010, 06:03 PM
MikeCz MikeCz is offline
Mike

Join Date: Jun 2009
Location: Australia
Posts: 677
Thanks: 8
Thanked 92 Times in 70 Posts
Closeup Basic PC Interface.

__________________
04 - V6 Auto Luxury Accord (Thail build).
Various DIY info.
Itís easy to be NASTY - Sometimes it takes a little more effort to be NICE.
Reply With Quote Quick reply to this message
  #5
Old 10-22-2010, 06:13 PM
MikeCz MikeCz is offline
Mike

Join Date: Jun 2009
Location: Australia
Posts: 677
Thanks: 8
Thanked 92 Times in 70 Posts
There will be more to come and a full DIY if there is any interest in this.

I have made a ďone pieceĒ aluminium face plate/panel that replaces the existing Head unit and lower cubby. The HVAC PCB will mount in the same position behind an 8Ē LCD screen. No need to cut or modify any HVAC plugs or leads. All HVAC function can be controlled from the touch screen on the PC.

The Car PC will mount below or in the lower cubby area. The lower area could hold the HVAC PCB if you wanted to add an AUDIO unit only in the top section.

A small $12 LCD display can be mounted in a convenient location if you wanted full time HVAC display of settings without running the CAR PC.
__________________
04 - V6 Auto Luxury Accord (Thail build).
Various DIY info.
Itís easy to be NASTY - Sometimes it takes a little more effort to be NICE.
Reply With Quote Quick reply to this message
  #6
Old 10-30-2010, 07:18 PM
MikeCz MikeCz is offline
Mike

Join Date: Jun 2009
Location: Australia
Posts: 677
Thanks: 8
Thanked 92 Times in 70 Posts
Update

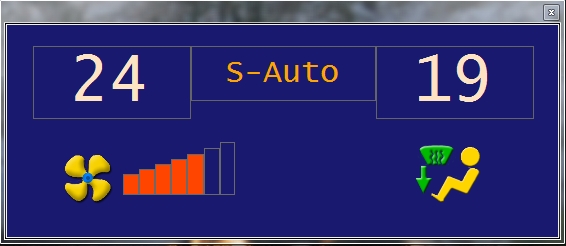

I have the full CAR-PC HVAC controls working. I will make this small interface available when finished, parts are about $50.

Basically:

1: Remove the radio and CD.

2: Remove the large printed board that they plug into and place and mount this PCB in a plastic box. The box is mounted low down behind the lower cubby.

3: The existing HVAC wiring is plugged back in – no changes needed - and a small micro PCB is mounted inside the case and a few wires are attached to the HVAC PCB.

Now, the only other lead that’s plugged into the relocated box is a USB cable going to the CAR-PC.

I have just finished the CAR-PC, same size as the old CD/Radio, it boots Win7 in 11 seconds. It cold boots from suspend to RAM to fully running in 2 seconds – Faster that I can put my seatbelt on and start the car.




In HVAC diagnostic mode all errors are decoded and reported with full error descriptions. Both diagnostic modes are supported and decoded.
__________________
04 - V6 Auto Luxury Accord (Thail build).
Various DIY info.
Itís easy to be NASTY - Sometimes it takes a little more effort to be NICE.
Reply With Quote Quick reply to this message
  #7
Old 11-01-2010, 09:22 AM
Grohe Grohe is offline
2nd Gear

Join Date: Oct 2010
Posts: 85
Thanks: 0
Thanked 0 Times in 0 Posts
Definitely interested in this
Reply With Quote Quick reply to this message
  #8
Old 11-02-2010, 02:05 AM
MikeCz MikeCz is offline
Mike

Join Date: Jun 2009
Location: Australia
Posts: 677
Thanks: 8
Thanked 92 Times in 70 Posts
Quote:
Originally Posted by Grohe View Post
Definitely interested in this
Hi Grohe, itís starting to come together, getting to the last measurement stages now that the PC is built and I know the final size of all components.
I just finished mounting the 8Ē screen and Iím in the process of mounting the relocated HVAC PCB behind this new screen

The beauty of this design is that the original system can be put back together and installed if the car is to be sold. This is why I didnít want to cut into the original Radio/CD unit fascia.

As before, if all you want to do is to relocate the HVAC PCB and put a new Radio/CD unit in the dash, then the small interface board Iím making will allow you to have a small display for the HVAC located in a convenient place.
This was the main stumbling block for a lot of DIY owners - In the past, if you removed the radio you lost the HVAC display.

Iíll make a full step by step write up with pictures when Iím finished. If there are a few people interested in the interface I may get a 20 or so interface PCBís made up.
__________________
04 - V6 Auto Luxury Accord (Thail build).
Various DIY info.
Itís easy to be NASTY - Sometimes it takes a little more effort to be NICE.
Reply With Quote Quick reply to this message
  #9
Old 11-04-2010, 03:10 AM
MikeCz MikeCz is offline
Mike

Join Date: Jun 2009
Location: Australia
Posts: 677
Thanks: 8
Thanked 92 Times in 70 Posts
Update

We have Separation.

There were a few setbacks that turned out to be a blessing in disguise.
The Display-HVAC PCB will not fit back into the console if it spaced back even slightly.

Honda made this board to just fit in the opening and the opening get smaller with depth.

This forced my hand to find a case and a location to mount it.
I found an ďoff the shelfĒ plastic electronic case that is low cost and almost a perfect fit for the PCB.

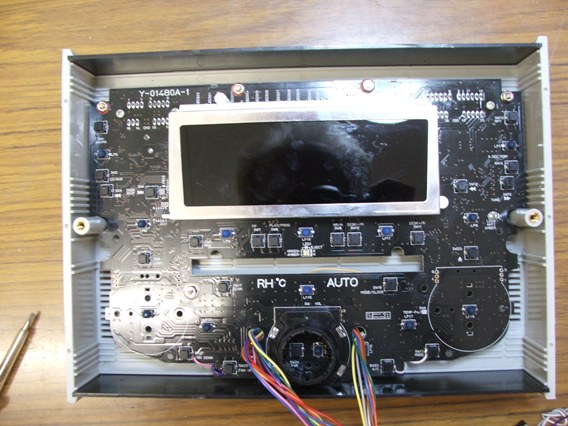

The picture shows the case with the existing HVAC sockets protruding through bottom, just as the OEM unit does.

__________________
04 - V6 Auto Luxury Accord (Thail build).
Various DIY info.
Itís easy to be NASTY - Sometimes it takes a little more effort to be NICE.
Reply With Quote Quick reply to this message
  #10
Old 11-04-2010, 03:21 AM
MikeCz MikeCz is offline
Mike

Join Date: Jun 2009
Location: Australia
Posts: 677
Thanks: 8
Thanked 92 Times in 70 Posts
The Prototype interface PCB is shown in the second photo.
There are only 3 leads coming from the case, the two original HVAC plugs and one USB lead to the PC.
This Interface PCB only has a handful of components and is very easy to build- all the hard work is done by the program code in the micro.

This case fits perfectly in the lower compartment behind the cubby.
No leads are changed in the car - The HVAC plugs back in as before for a perfect fit.

The only unused cable, at the moment, is the old Radio plug.
This will be utilised for the car PC or aftermarket audio system if you want to go that way.

The software controls the HVAC perfectly via the interface module.

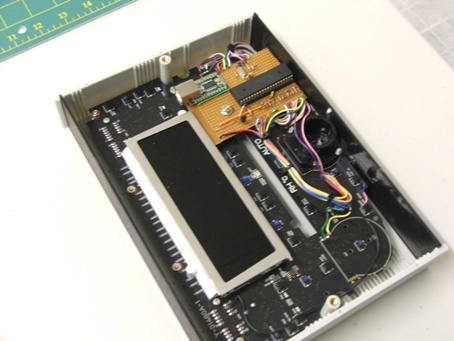

The Prototype interface PCB
This Interface PCB only has a handful of components and is very easy to build



This was the old combined Radio/HVAC unit - You can see the green HVAC plugs in the photo.
__________________
04 - V6 Auto Luxury Accord (Thail build).
Various DIY info.
Itís easy to be NASTY - Sometimes it takes a little more effort to be NICE.
Reply With Quote Quick reply to this message
  #11
Old 11-06-2010, 02:21 AM
MikeCz MikeCz is offline
Mike

Join Date: Jun 2009
Location: Australia
Posts: 677
Thanks: 8
Thanked 92 Times in 70 Posts
It works

Today was the first test of the relocated HVAC board and the A/C. Up until now everything was just data from the HVAC. Nothing actually connected to the CAR




The PC is mounted in a Mini-Box metal case. The case is beautifully made and around $60.




Here is a size comparison to the old Radio-CD unit.
__________________
04 - V6 Auto Luxury Accord (Thail build).
Various DIY info.
Itís easy to be NASTY - Sometimes it takes a little more effort to be NICE.
Reply With Quote Quick reply to this message
  #12
Old 11-06-2010, 02:25 AM
MikeCz MikeCz is offline
Mike

Join Date: Jun 2009
Location: Australia
Posts: 677
Thanks: 8
Thanked 92 Times in 70 Posts
Things were going so well as everything came together so easily, I was sure there was going to be a problem, but it all worked faultlessly first time.
There were no glitches or problems with the system as the car was cranked over. PC control of the HVAC was as smooth as silk.
PC automated diagnostics worked perfectly, no more remembering diagnostics-mode key sequences or trying to decode lit segments of the display.

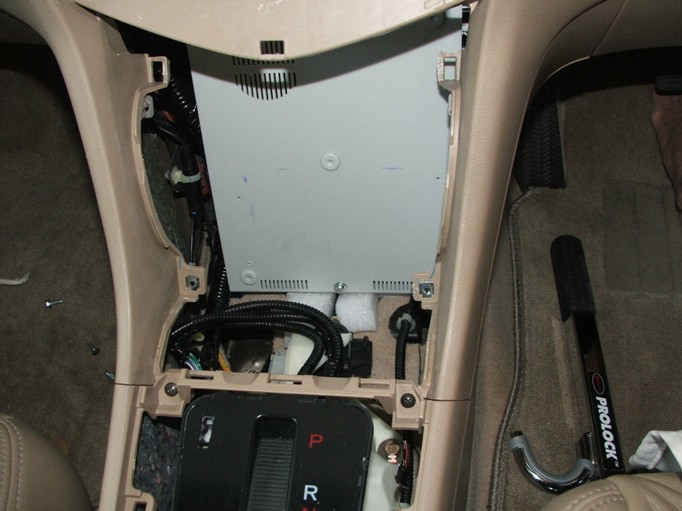

HVAC mounted in the car.

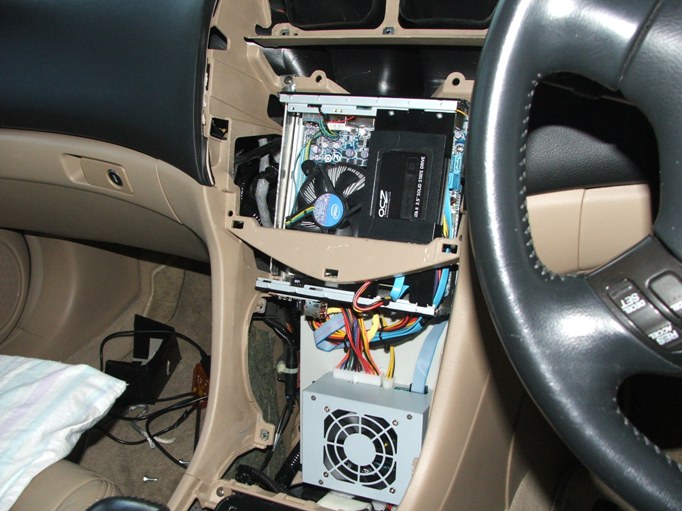

HVAC - PC and 250 Watt programmable PSU in the car.
__________________
04 - V6 Auto Luxury Accord (Thail build).
Various DIY info.
Itís easy to be NASTY - Sometimes it takes a little more effort to be NICE.
Reply With Quote Quick reply to this message
  #13
Old 11-06-2010, 02:28 AM
MikeCz MikeCz is offline
Mike

Join Date: Jun 2009
Location: Australia
Posts: 677
Thanks: 8
Thanked 92 Times in 70 Posts
The HVAC PCB does not need to be removed to make changes to the firmware in the Micro, should the need arise.

I wrote a boot-loader into the firmware. A companion APP on the PC can
update the firmware at any time via the already connected HVAC-control
USB connection.





The PC slides down and locks into the existing side mounting tabs. The PC case is metal and has a wedge piece of hard foam glued to the bottom of the case.
As the PC slides down, the foam forces the new HVAC BOX to seat firmly against the existing rear mounting plate.
The PC is also secured by two screws in the plastic top mounting frame. No rattles and everything is locked in place.

Nothing had to be cut or modified in the car.

The Screen and PC are easier to remove that the old Radio/HVAC head-unit.
__________________
04 - V6 Auto Luxury Accord (Thail build).
Various DIY info.
Itís easy to be NASTY - Sometimes it takes a little more effort to be NICE.
Reply With Quote Quick reply to this message
  #14
Old 11-06-2010, 06:45 AM
Situationz's Avatar
Situationz Situationz is offline
KCK

Join Date: May 2010
Posts: 83
Thanks: 0
Thanked 0 Times in 0 Posts
looks like a well thought out plan is taking shape. great work.
__________________
EBONY

'04 EX-V6 NHB
Green LED cup holders
Green/Blue LED foot wells
Reply With Quote Quick reply to this message
  #15
Old 11-06-2010, 07:03 PM
stiller fan's Avatar
stiller fan stiller fan is offline
next stop: 300k!!!

Join Date: Aug 2004
Location: Mobile, AL
Posts: 15,188
Thanks: 9
Thanked 18 Times in 17 Posts
Send a message via AIM to stiller fan Send a message via Yahoo to stiller fan Send a message via Skype™ to stiller fan
i wanna see what it looks like when complete....
__________________
Quote:
Originally Posted by craigslist ad
ďI'm 5'6'brown eyes,38 old,no child,but like.Ē Please press 1 for English. No child, but like. You are child-like? You like no child? You like children? Sorry, the subscription for my translator is expired.
PROUD FAN OF STEELERS, PIRATES, AND PENGUINS

DA moderator

2007 Honda Accord LX Coupe 2.4 MT (201k miles)

gone, but not forgotten:
1993 Honda Accord (341k when sold, retired @ 369k)
1999 Honda Accord coupe (168k when sold, last check-in @ ~197k, blown head gasket)
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Drive Accord Honda Forums forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
The answer to the random question may be found under the Off Topic section of the forums and in the "Drive Accord Forums" category.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump


All times are GMT -8. The time now is 11:23 AM.




Powered by vBulletin® Copyright ©2000 - 2014, vBulletin Solutions, Inc.
